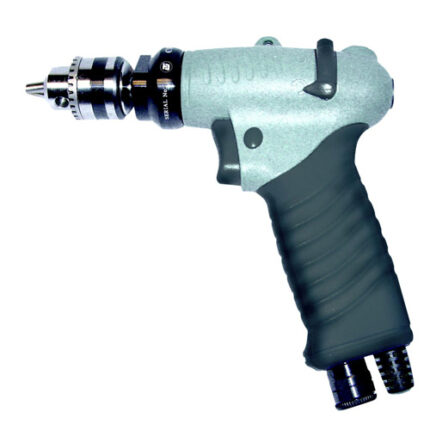

1/4″ Composite Rev Air Drill Ut8816

The UT8816 is a compact, reversible 1/4″ air drill designed for precision drilling and fastening tasks in professional environments. Its lightweight construction and high-speed operation make it suitable for applications requiring maneuverability and consistent performance over extended periods.

What You Get

• 1/4-inch keyed chuck for secure bit retention.
• 2900 rpm free speed for efficient material removal.
• 0.24 HP (179 watts) motor for reliable power.
• Average air consumption of 4 cfm, requiring a compressor FAD of 16 cfm.
• Compact dimensions: 140 mm (5.5 ins) length, 154 mm (6.1 ins) height.
• Lightweight design at 0.58 kgs (1.3 lbs) for reduced operator fatigue.
• Low sound pressure level of 72.0 db(A) for quieter operation.
• 3/8′ x 24mm UNF spindle thread.
• 1/4 BSP air inlet.

Built For

This drill is engineered for assembly work, light fabrication, and maintenance tasks where space is restricted and precise drilling or tapping is necessary. Its reversible function supports both drilling and driving applications. Ideal for technicians, mechanics, and assembly line workers needing a reliable, agile air tool.

Construction

The main body of the UT8816 is constructed from a durable, speckled grey composite material, likely a reinforced polymer, chosen for its strength-to-weight ratio and resistance to workplace wear. The ergonomic grip, trigger, and various fittings are molded from a dark grey/black material, providing a secure hold and tactile feedback. The chuck is made from metallic silver steel, ensuring robust bit clamping and longevity.
